Product Introduction:

Today, as energy efficiency and safety standards become increasingly stringent, the electric water heater comprehensive energy efficiency test system integrates energy efficiency testing, safety performance verification, and pressure resistance testing, covering the quality control needs of electric water heaters throughout their life cycle. The system uses dynamic image analysis technology to monitor core data such as water temperature, water pressure, and electrical parameters in real time. Whether it is a storage type, instant or air-energy water heater, HCWHEF01 can provide accurate and efficient testing support to help companies quickly respond to market standards and seize the initiative in the green energy track.

Equipment system composition:

Test room: The test room has strict requirements on temperature and humidity, which are achieved by the machine room air conditioner.

Sample mounting bracket: 2, installed in the test room, arranged on both sides, each test bracket has 3 test stations.

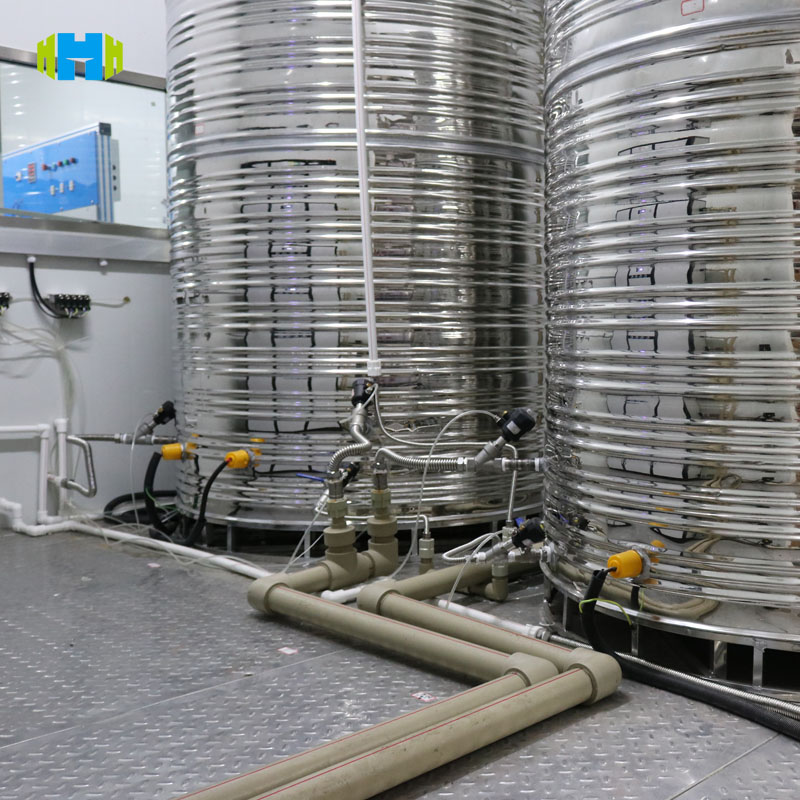

Water supply room: Contains 2 water storage tanks and constant temperature and pressure water supply pipelines.

Control cabinet: It is the data acquisition, data processing and control center of the system.

International standards:

IEC 60379 Methods for measuring the performance of electric storage water-heaters for household purposes.

GB 21519 Minimum allowable values ​​of energy efficiency and energy efficiency grades for electrical storage water heaters.

Technical Parameters:

Product use:

Applicable objects: storage electric water heaters, instant electric water heaters, air energy water heaters, solar water heaters (adapter module required).

Core users: electric water heater manufacturers, third-party quality inspection agencies, scientific research institutes, energy efficiency certification centers.

Test items:

Safety performance: leakage protection, over-temperature power off, anti-electric wall performance.

Energy efficiency indicators: 24-hour inherent energy consumption, hot water output rate, heating speed.

Durability test: corrosion resistance of the inner tank (1000 pressure cycles), magnesium rod consumption rate.

Environmental adaptability: high and low temperature working conditions performance, water hardness influence.

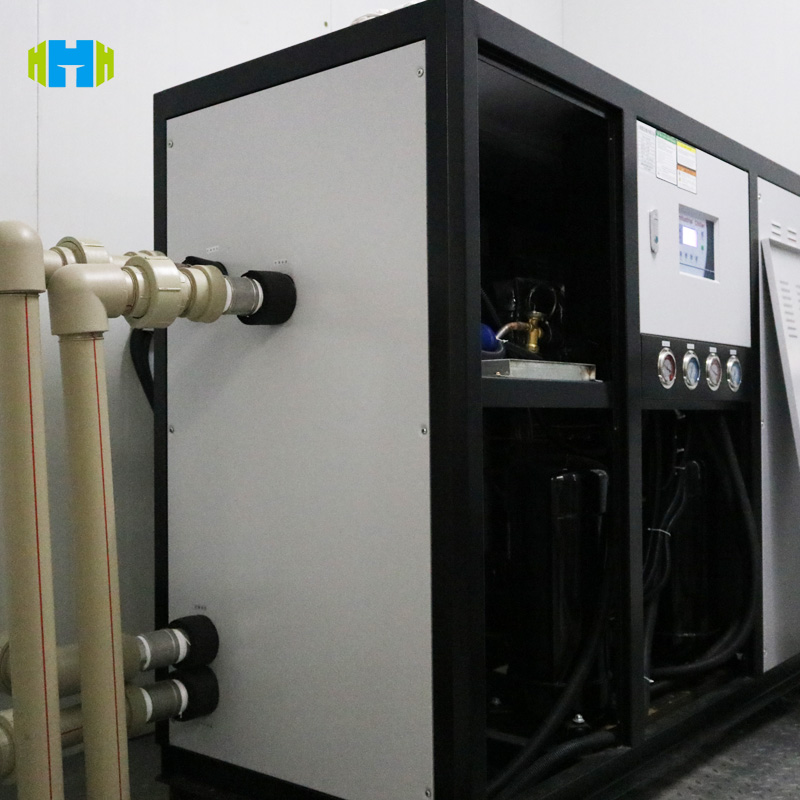

Detail pictures:
