High current arc ignition tester is designed to protect the safety of electronic appliances and materials. It evaluates the fire resistance of insulating materials, plastics and electronic components by accurately simulating arc ignition scenarios.
رقم الصنف :
HONGCEالنظام (موك) :
HAI-1دفع :
Calibration certificate(cost additional)أصل المنتج :
ChinaPayment Method :
L/C, T/TRegular Packaging :
PlywoodHigh current arc starting and ignition tester Complies with IEC 60950-1 standard Current 33A adjustable
Product introduction:
This test system is mainly used for parts of insulating materials or other solid combustible materials that are easy to spread flames inside electrical and electronic equipment. They may ignite due to proximity or contact with arcs, causing electrical fires and endangering the reliable operation of equipment and personal safety.
Product features:
The high current arc ignition tester uses dual electrodes. Under a specific current (33A) and power factor (COSφ0.5), it repeatedly ignites arcs on the surface of the test piece up to 200 times at a certain arc ignition speed (254mm/s) and repetition frequency (40 times/min). The test piece is evaluated for its high current arc ignition resistance performance by whether it ignites under the specified arc ignition times. (HAI). The smaller the level number, the more difficult it is for the material to burn.
International standards:
EC 60950-1: General requirements for the safety of information technology equipment.
UL 746A: Standard for short-term performance evaluation of polymer materials.
GB 4943-2001: China Information Technology Equipment Safety Standard.
IEC 60947.1: General rules for low-voltage switchgear and control equipment.
BS 7002: British fire test methods for electrical and electronic products.
Product use:
This test system is suitable for the research, production and quality inspection departments of electrical and electronic products and their components such as lighting equipment, low-voltage electrical appliances, household appliances, machine tool appliances, motors, power tools, electronic instruments, electrical instruments, information technology equipment, electrical business equipment, electrical connectors and accessories, and is also suitable for the insulation material, engineering plastics or other solid combustible material industries.
Parameters:
| Working voltage | 110V/60Hz |
| Control operation mode | Electrical control, button operation |
| Arc strike current and power factor | When the power factor is 0.5, the current is 33A±0.5A |
| Arc strike speed | 40 times/min |
| Electrode separation velocity | 254±25㎜/S |
| Arc strike times | 0-9999 can be preset |

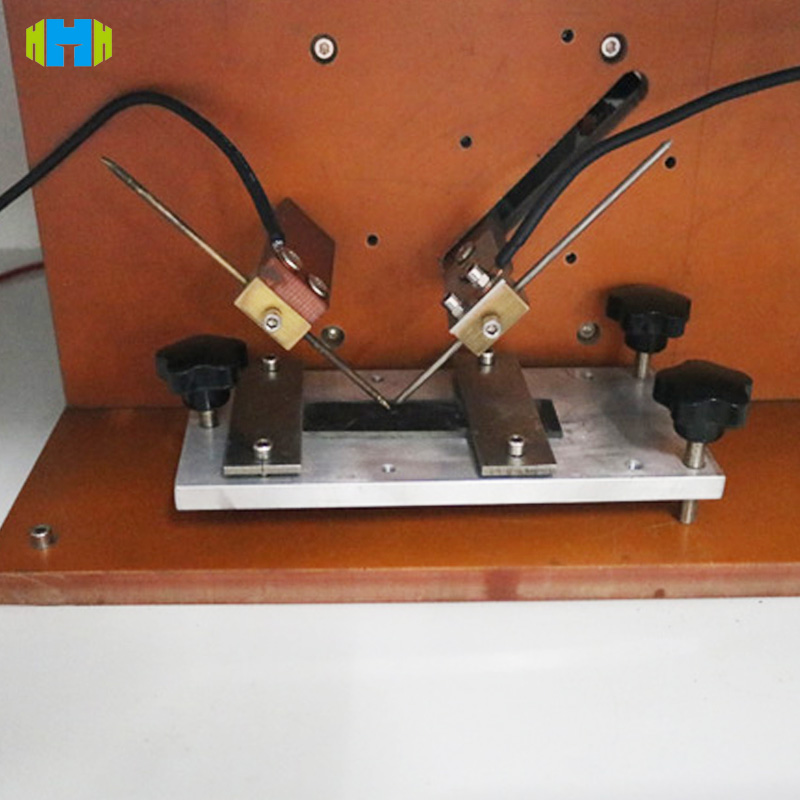

| Electrode material |
Static electrode—copper,dia.Ф3.5mm (Ф3.2)×152mm,top bevel angle 30° Moving electrode—stainless steel,diaФ3.5mm(Ф3.2)×152mm, top cone angle 60° |
| Electrode included angle | Form 45° with level,electrode head radius of curvature 0.1mm |
| Test procedure | Automatic control, independent exhaust |
| Lighting | Equip with lighting in the test chamber, with control |

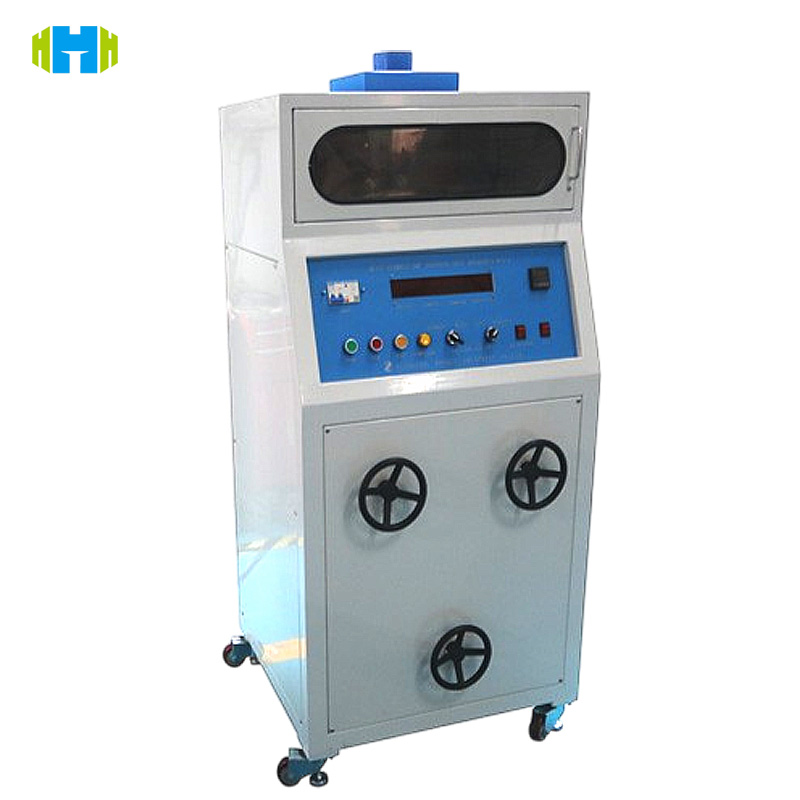

| Test chamber and dimension | LWH:800×700×1600mm,300kg |
Details pictures:
