500kW High Torque Large Reducer Test Bench 50000N·m Motor Performance Test System

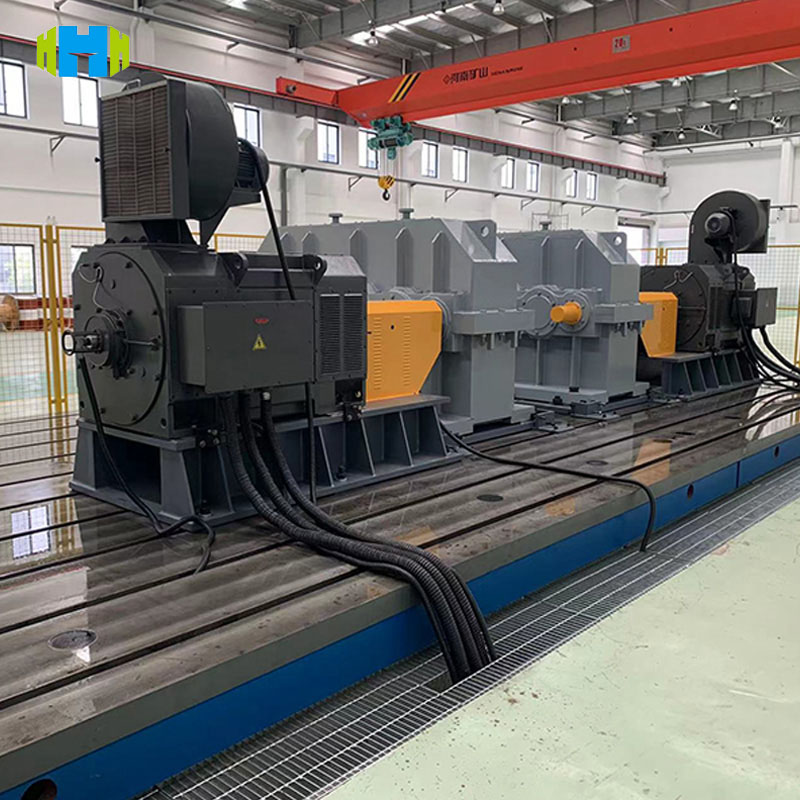

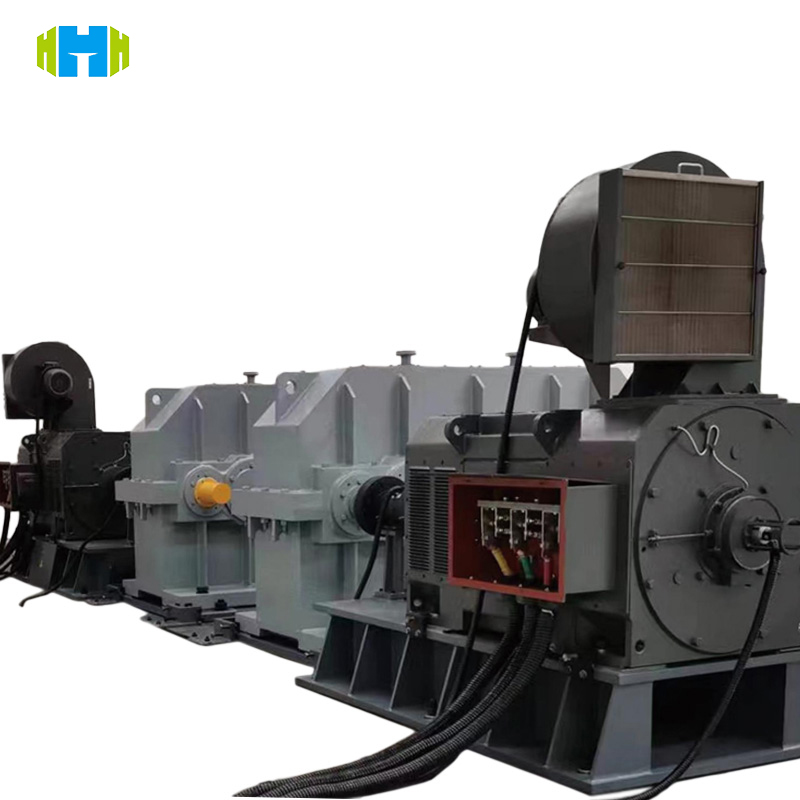

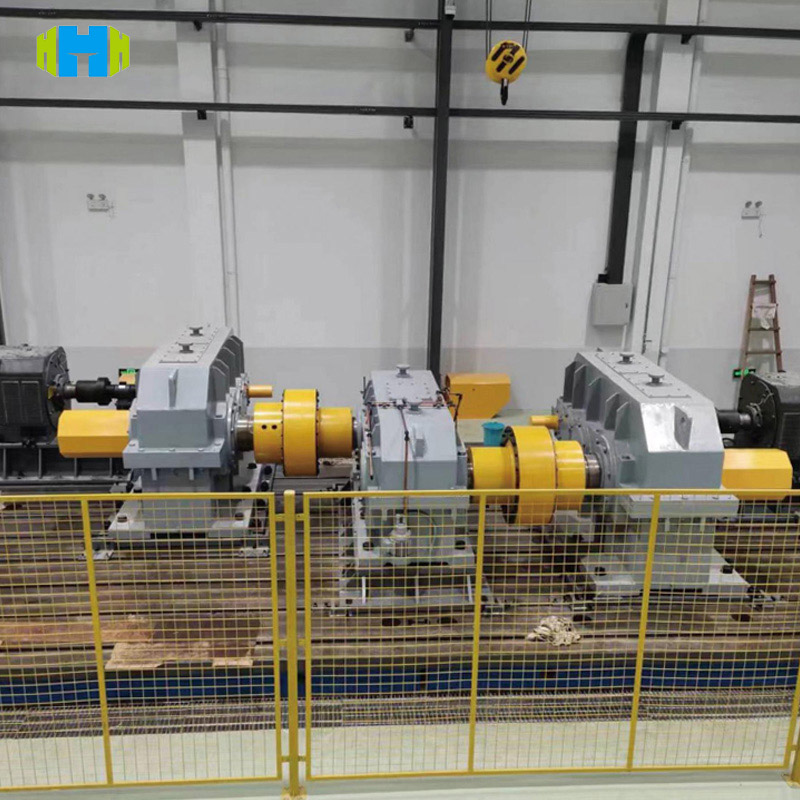

The HCTE-MPTE-001 Large Reducer Test Bench is a heavy-duty dynamometer system engineered for comprehensive performance evaluation of industrial reducers. With a 500kW drive motor and 50000N·m maximum load torque, this bench delivers precision testing for high-power applications, featuring energy feedback technology and ISO-compliant diagnostics. Ideal for large-scale gearboxes in mining, marine, and renewable energy sectors.

  • رقم الصنف :

    HCTE

  • النظام (موك) :

    HCTE-MPTE-001

  • دفع :

    Calibration Certificate(cost additional)

  • أصل المنتج :

    CHINA

  • Payment Method :

    L/C, T/T

  • Regular Packaging :

    Plywood
استعلام

500kW High Torque Large Reducer Test Bench 50000N·m Motor Performance Test System



Product Features

  1. Heavy-Duty Capability: Handles up to 50000N·m torque and 200kW+ power transmission for large industrial reducers.
  2. Energy-Efficient Design: Integrates regenerative energy feedback (≥75% power savings) for low operational costs.
  3. Precision Control: ±1% loading accuracy and 0–3000 rpm stepless speed regulation for repeatable results.
  4. Automated Workflow: Programmable load spectrum testing with stepwise speed/torque ramping for complex scenarios.
  5. Bidirectional Testing: Supports forward/reverse rotation with identical accuracy and energy recovery in both directions.
  6. Modular Integration: Flexible installation for standalone use or integration into automated production lines.

International Reference Standards

  • Mechanical Performance: ISO 6336 (Gear Reducer Power Ratings)
  • Vibration & Noise: ISO 10816 (Machine Vibration) & ISO 3745 (Acoustic Noise Measurement)
  • Electrical Safety: IEC 60204-1 (Machinery Electrical Systems)
  • Energy Efficiency: ISO 14441 (Industrial Gearbox Efficiency)
  • Safety Compliance: OSHA 1910 (US) / EN 60204-1 (EU)

Product Uses

  • Heavy Industry: Testing large gear reducers for mining equipment, steel mills, and marine propulsion systems.
  • Renewable Energy: Evaluating wind turbine gearboxes and hydroelectric drive systems.
  • Transportation: Quality control for heavy-duty vehicle transmissions and rail traction reducers.
  • OEM Manufacturing: End-of-line testing for high-power reducers in construction machinery (e.g., cranes, excavators).

Technical Parameters

Test Item Parameter Specifications
Max. Load Torque 50000 N·m –
Drive Motor Power 500 kW –
Speed Range 0–3000 rpm ±0.2% accuracy
Loading Accuracy ±1% F.S. –
Energy Feedback Efficiency ≥75% –
Test Direction Bidirectional (forward/reverse) Same accuracy in both modes
Temperature Range -10°C–60°C ±1°C monitoring
Vibration Analysis 0–100 mm/s (RMS) ±5% accuracy
Noise Measurement 30–140 dB(A) ±1 dB(A)
Power Supply 380V AC, 50/60Hz, 3-phase –
Control System PC-based with touchscreen HMI Real-time data logging & report generation
Load Spectrum Modes Manual / Automated (stepwise ramping) Customizable via software
Dimensions (L×W×H) 5000×3000×2000 mm –
Weight 5000 kg –
Data Sampling Rate 2000 Hz –
Calibration Interval Annual (ISO-certified) –

Tested Objects

  • Reducer Types:
    • Large gear reducers (spur/helical/bevel)
    • Planetary reducers for wind turbines
    • Marine gearboxes and heavy-duty vehicle transmissions
    • Industrial reducers with power ratings ≥100kW

Detectable Items

  1. Mechanical Parameters:
    • Input/output torque, speed, power
    • Transmission efficiency, gear mesh stiffness
    • Backlash and axial/lateral displacement
  2. Thermal Performance:
    • Bearing temperature rise, oil cooling efficiency
  3. Reliability Tests:
    • Fatigue life under cyclic loading
    • Overload protection response (≥150% rated torque)
  4. Acoustic & Vibration:
    • Noise frequency spectrum, vibration mode analysis
