The handheld water-proof and splash-proof test device is designed for waterproof performance testing of electrical and electronic products, automotive parts, lamps and other shells.
رقم الصنف :
HONGCEالنظام (موك) :
HH0804Sدفع :
Calibration certificate(cost additional)أصل المنتج :
ChinaPayment Method :
L/C, T/TRegular Packaging :

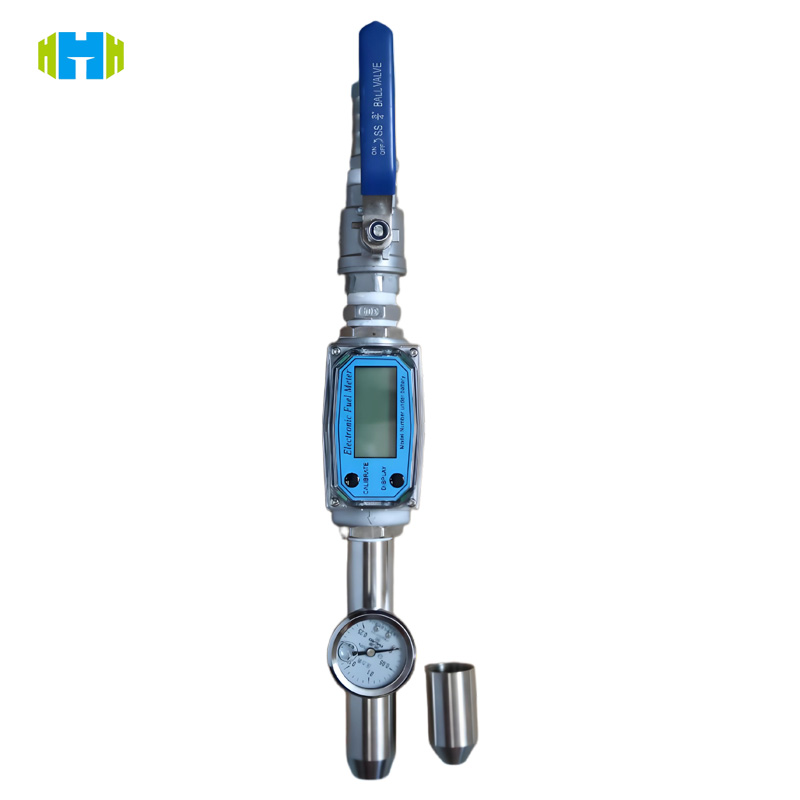

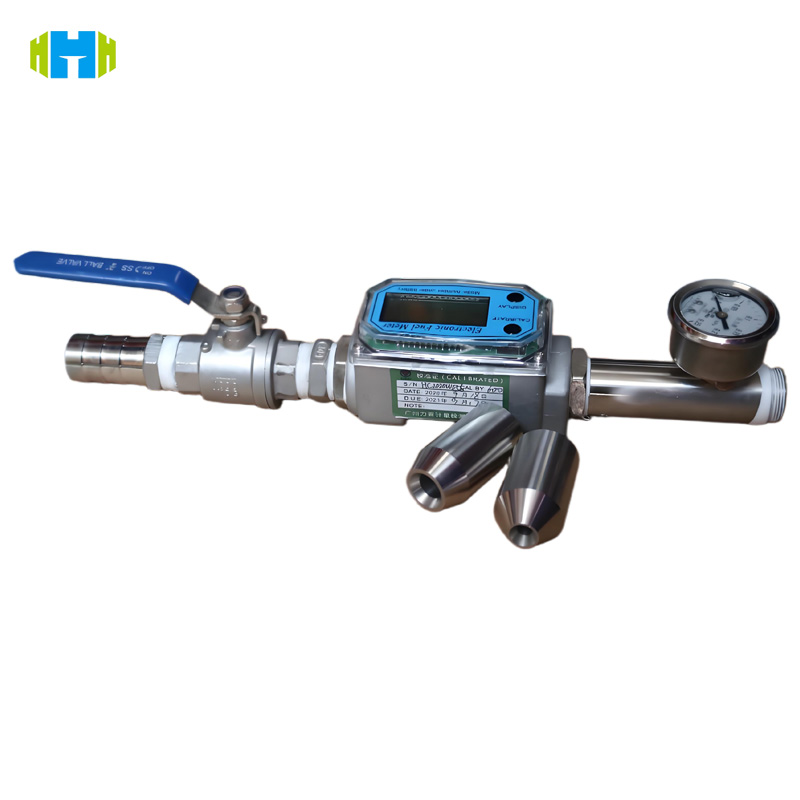

Aluminum boxHandheld splash and shower test device HH0804S IPX5, IPX6 test Digital flow meter
Product introduction:
HH0804S handheld water-proof and splash-proof test device, the device is made of advanced technology and high-quality materials to ensure stable and reliable performance. Its handheld and lightweight design can be used flexibly in different testing sites, greatly improving the testing efficiency. The digital flow meter makes the flow data clearly visible, convenient for real-time monitoring and recording, and provides accurate data support for the test results.
Standard:IEC60529 degree of protection provided by enclosures (IP Code) of the IPX5 and IPX6, IEC60884-1, IEC60335-1, IEC60598-1.
Application:It is used for the testing of IPX5 and IPX6.
Product use:
This equipment is mainly used to test the water-proof and splash-proof performance of various industrial products. It is suitable for waterproof performance testing of electronic devices (such as mobile phones, tablets, digital cameras), household appliances (such as washing machines, water heaters, kitchen appliances), lighting fixtures (such as outdoor lamps, street lights, garden lights), instruments (such as industrial control instruments, sensors), etc., to help companies ensure that products can work normally in humid and rainy environments, and improve product quality and reliability.
Technical parameters:
| Model | HH0804S-1 | HH0804S-2 |
| Item | IPX5 | IPX6 |
| The nozzle diameter | Ф6.3mm | Ф12.5mm |
| Water flow | 12.5±0.625L/min, Flow meter is adjustable | 100±5 L/min, Flow meter is adjustable |
| The distance from jet nozzle to enclosure | 2.5~3m | |
| Testing time | Not less than 1min/m²(not less than 3 mins) | |
| Pressure gauge | 0~0.25MPa | |
| Site requirements |
Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation |
|
| Water supply |
Water flow rate ＞ 12.5L/min±5% clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment |
Water flow rate ＞100L/min±5% clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment |
Digital Flow Meter Parameters:
| Name | Digital flow meter |
| Applicable Medium | Diesel, gasoline, kerosene, methanol, water |
| Material | Stainless steel turbine, aluminum alloy body surface |
| Connection Mode | Thread |
| Nominal Diameter | 1 inch |
| Minimum Flow | 10L/min |
| Maximum Flow | 100L/min |
| Measurement Accuracy | ±1% |
| Repeatability | ±0.3% |
| Maximum Working Pressure | 6BAR |
| Single Count Range | 9999.9 |
| Cumulative Count Range | 999999 |
| Weight | 0.35KG |
Test objects:
Electronic devices: mobile phones, tablet computers, laptops, digital cameras, camcorders, smart watches, Bluetooth headsets, etc.
Household appliances: washing machines, refrigerators, air conditioners, water heaters, microwave ovens, ovens, kitchen appliances (such as food processors, juicers), vacuum cleaners, etc.
Lighting fixtures: outdoor lamps (such as street lamps, garden lamps, landscape lamps), indoor lamps (such as chandeliers, wall lamps, table lamps), LED lamps, explosion-proof lamps, etc.
Instruments: industrial control instruments, sensors, measuring instruments, medical instruments, communication equipment, etc.
Other products: power tools (such as electric drills, electric saws, electric welders), auto parts (such as car lights, vehicle-mounted electronic equipment), outdoor equipment (such as waterproof backpacks, waterproof camera bags), etc.
Detail pictures:

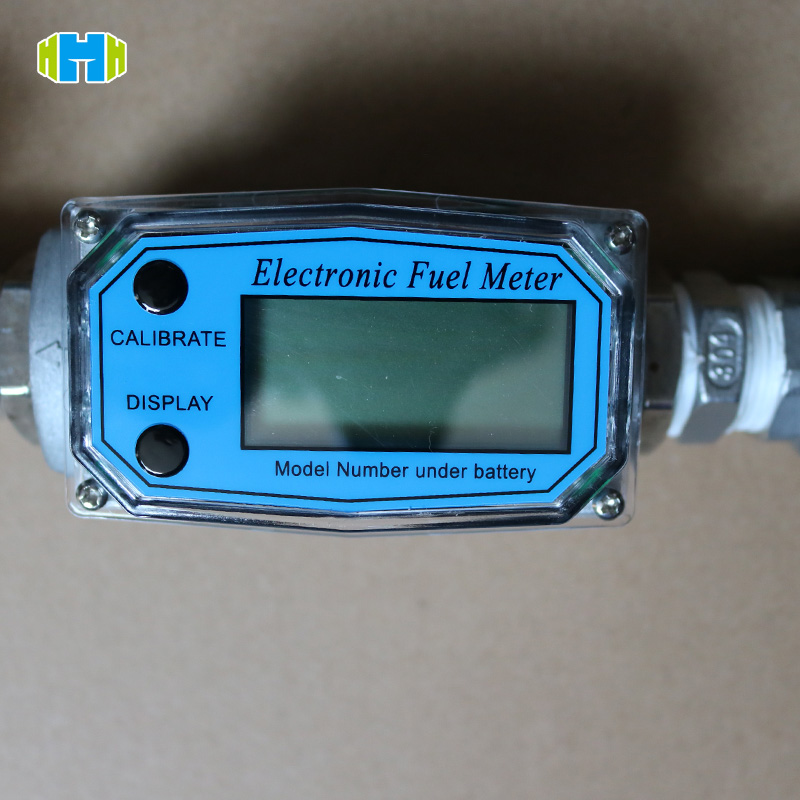

Display of digital flow meter screen
