Vertical drip test device IPX1/IPX2 fully automatic control waterproof testing equipment

Vertical drip test device IPX1/IPX2 fully automatic control waterproof testing equipment

Product introduction:

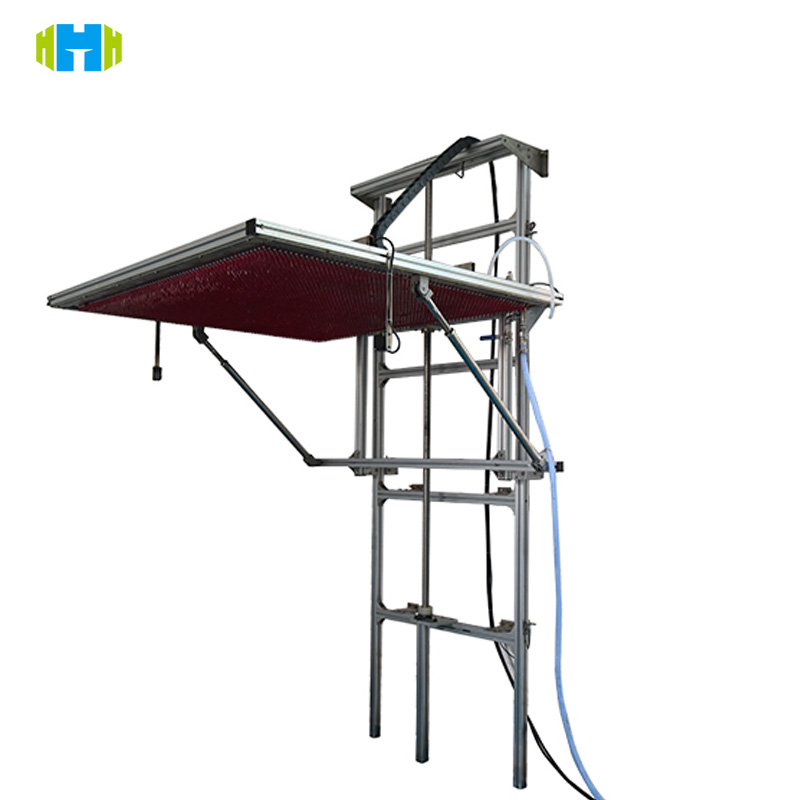

HH0801 vertical drip test device is a benchmark equipment in the field of IP protection level testing. It adopts a stainless steel body and intelligent control system to simulate a real drip environment and cover IPX1/IPX2 test requirements. Through high-precision flow regulation and automatic lifting technology, the consistency and reliability of the test results are ensured. The equipment is widely used in electronic appliances, automobile manufacturing, military equipment and other industries, providing efficient and compliant waterproof testing solutions for global customers.

Product features:

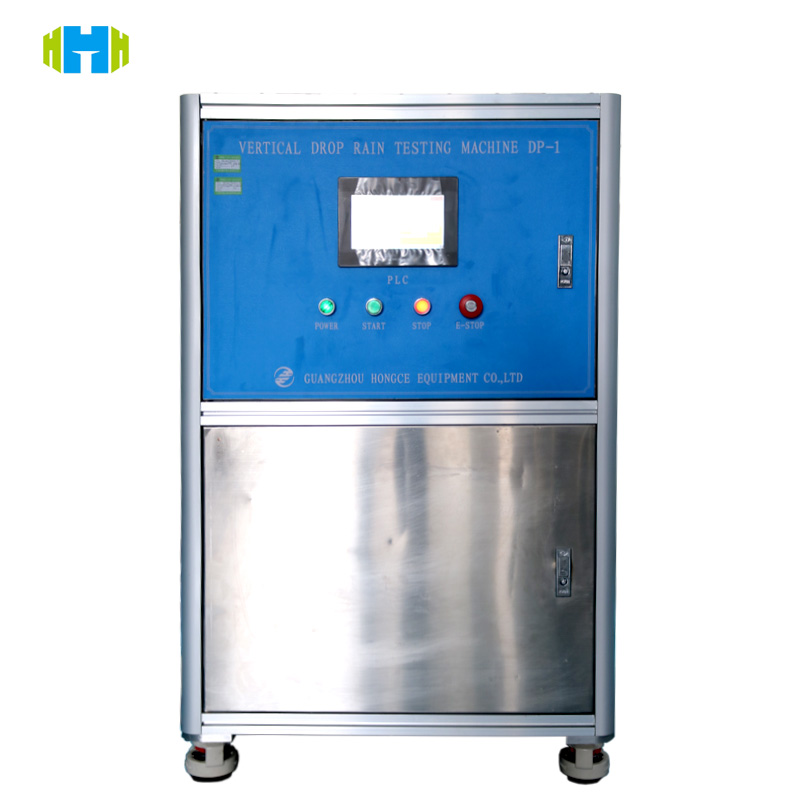

Intelligent control: 7-inch touch screen control, one-button start and stop, support language switching.

Precise adjustment: drip height 200mm electric adjustment, accuracy ±1mm.

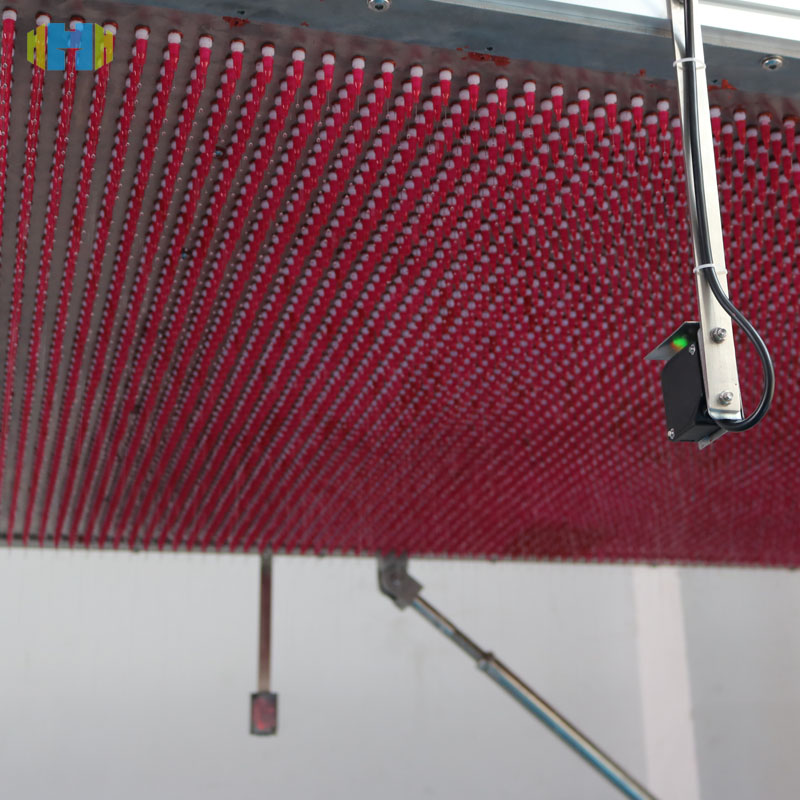

Durable material: stainless steel drip tank + aluminum alloy frame, corrosion-resistant.

Efficient water saving: circulating water supply system, can be matched with soft water filtration system to reduce operation and maintenance costs.

Safety protection: emergency stop function to ensure the safety of operators.

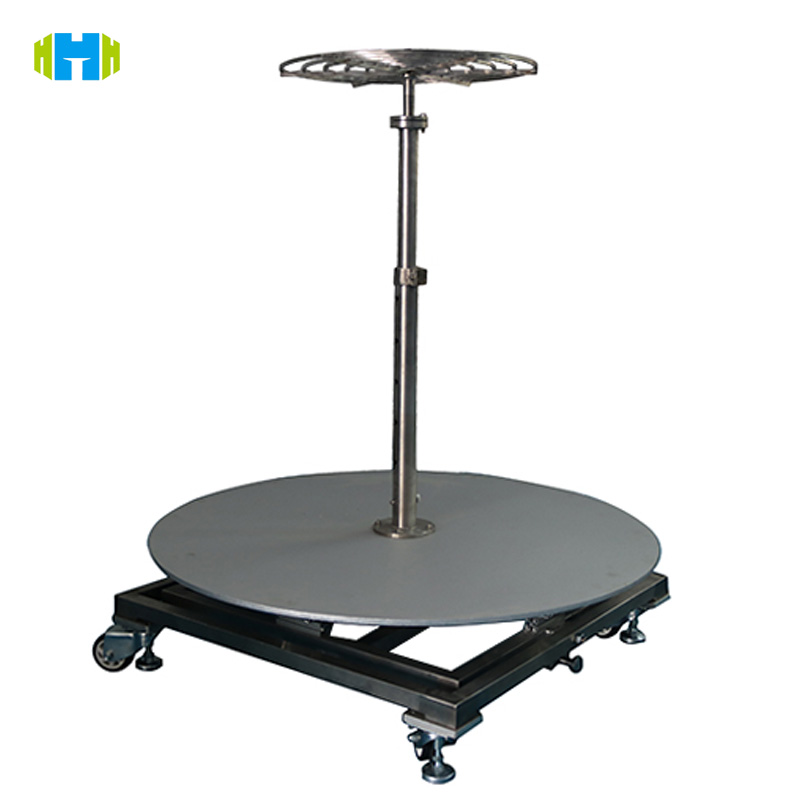

Flexible adaptation: the sample table can be tilted 15°, load-bearing 50kg, and compatible with products of various sizes.

Reference standard:

IEC60529 degree of protection provided by enclosures (IP Code) of the IPX1 and IPX2, IEC60884-1, IEC60335-1, IEC60598-1.

Reference standard:

Product use:

The vertical drip test device HH0801 is mainly used to test the waterproof performance of electronic, electrical, communication, lighting, home appliances, medical equipment and other products in a vertical drip environment. By simulating a real dripping scene, the protective ability of the product shell is evaluated to ensure that the product can work normally in a humid, rainy environment and avoid failures and damage caused by water ingress.

What items can be tested?

The waterproof performance of the product shell in a vertical dripping environment, that is, whether there are water drops penetrating into the shell, causing product damage or failure. ​

When the product shell is tilted at 15°, the impact of vertical dripping on the product, evaluate the waterproof ability of the product in a tilted state. ​

The impact of different dripping flow rates and times on the waterproof performance of the product, providing data support for product design and improvement.

Detail pictures:
