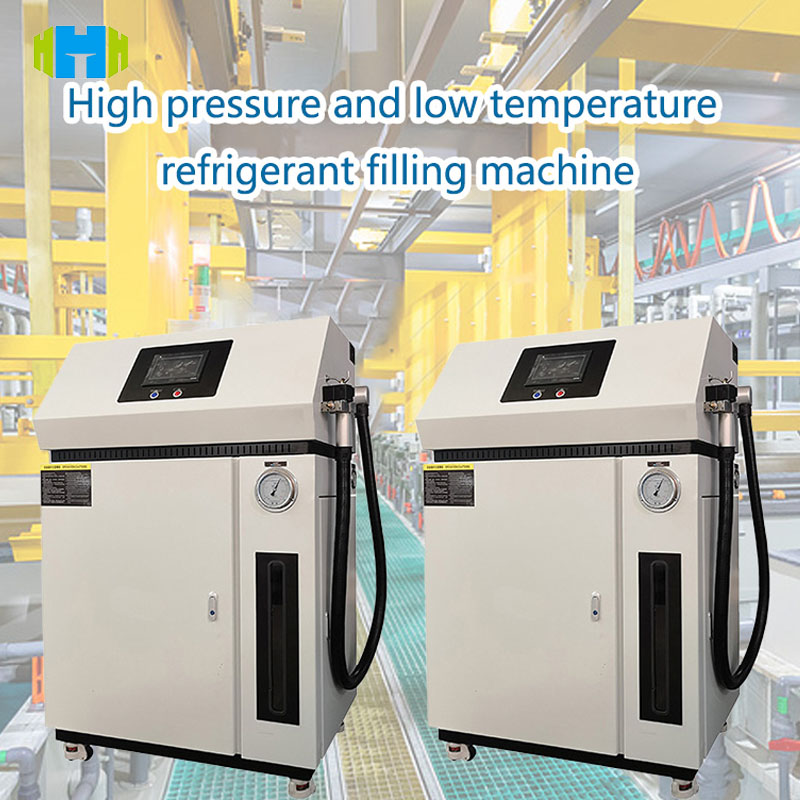

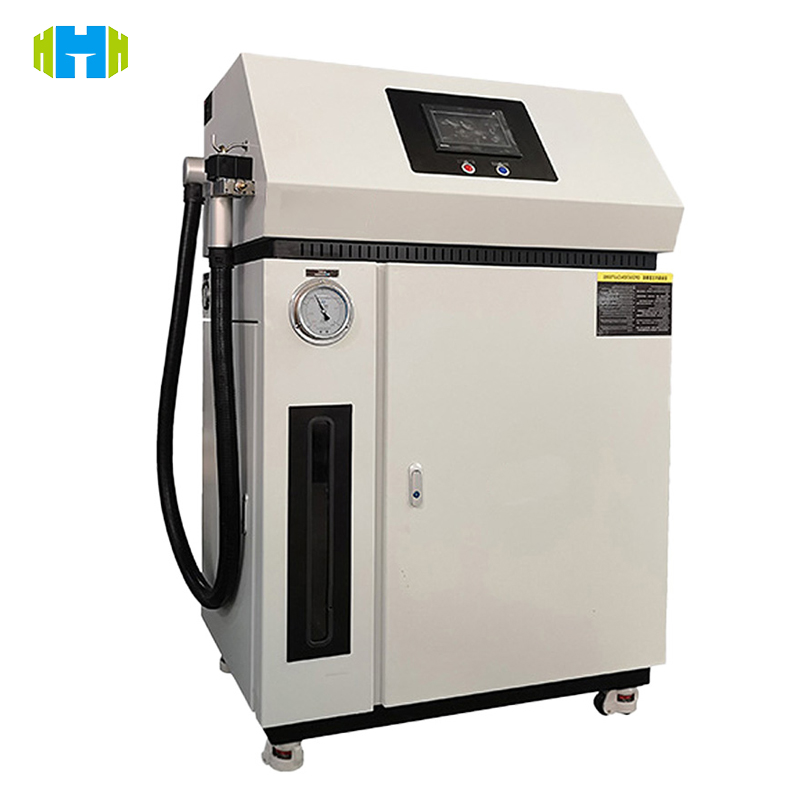

The RCM0013 high-pressure and low-temperature refrigerant charging machine is designed for extreme working conditions. It supports refrigerant charging at 120bar high pressure and -120°C low temperature environment with an accuracy of ±0.3g. The equipment is compatible with a variety of refrigerants such as HFCs, CO₂, NH3, and has passed CE and UL certification. It is suitable for precise refrigerant charging in aerospace, medical refrigeration and industrial cryogenic equipment, ensuring efficient and safe operation under harsh conditions.
رقم الصنف :
HONGCEالنظام (موك) :
RCM0013دفع :
Calibration Certificate(Cost Additional)أصل المنتج :
CHINAPayment Method :
L/C, T/TRegular Packaging :
PlywoodHigh Pressure Low Temperature Refrigerant Charging Machine 120bar Pressure Resistance -120°C Low Temperature Adaptation
Product Introduction

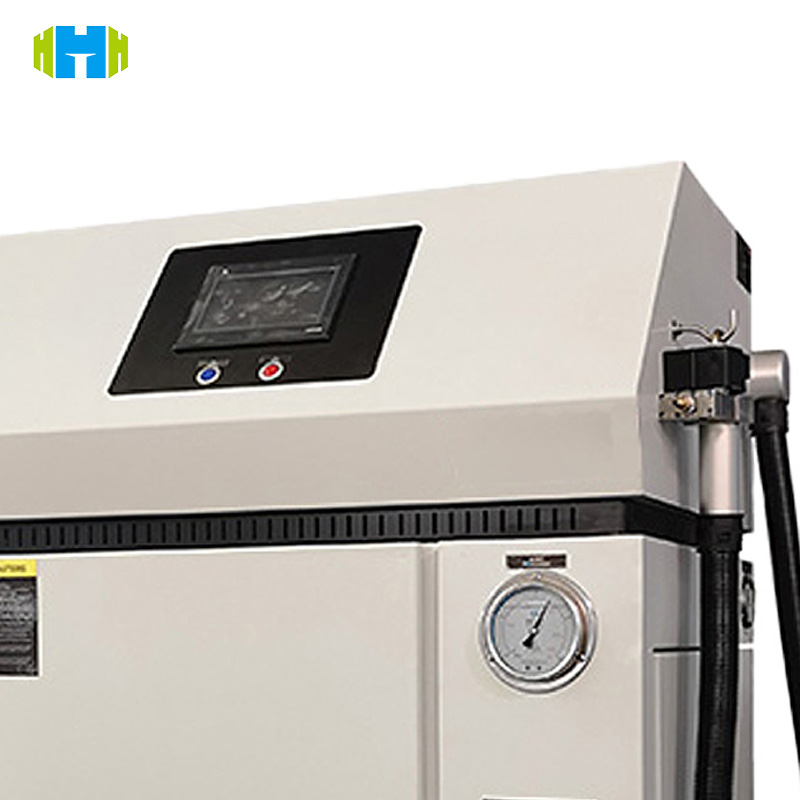

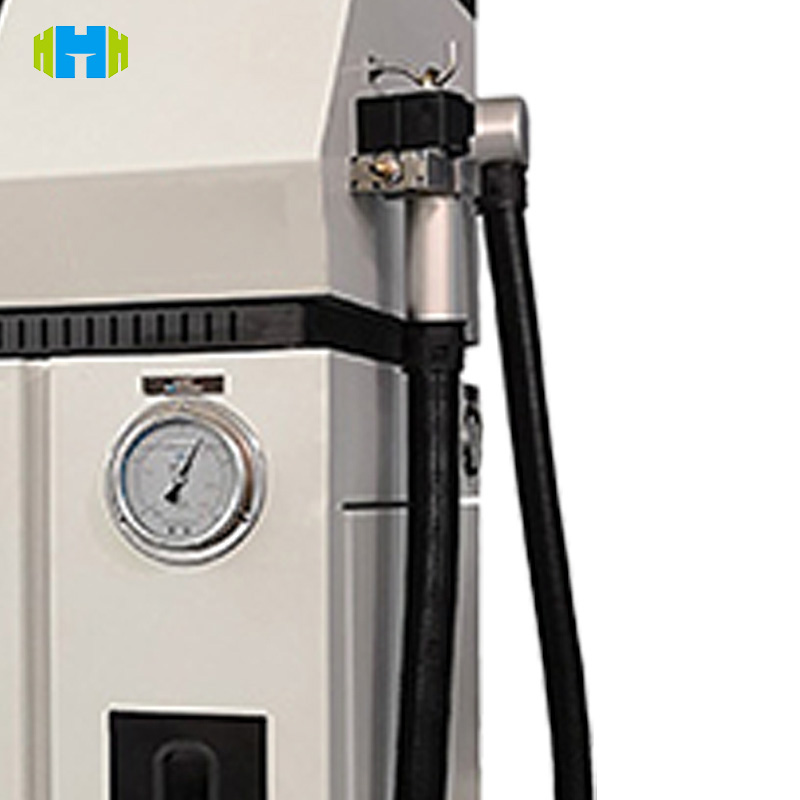

In response to the demand for high-pressure and low-temperature refrigerant processing in aerospace, medical cold chain and other fields, RCM0013 uses double-layer vacuum insulation pipes and high-strength alloy pressure-resistant structures to ensure stable operation at 120bar pressure and -120°C low temperature. Its intelligent dual closed-loop control system can automatically adjust the flow and pressure, and with high-precision weighing sensors, it can achieve accurate filling within the range of 1g-100kg. The 7-inch touch screen supports multi-language operation, built-in 200+ filling formulas, compatible with PLC automated production lines, and significantly improves production efficiency. In addition, the equipment integrates real-time leakage monitoring and automatic pressure relief protection to ensure all-round operation safety.
Product Uses
Aerospace: Low-temperature CO₂ refrigerant filling for satellite thermal control systems and rocket engine cooling devices.
Medical field: Refrigerant filling for -86℃ ultra-low temperature refrigerators and liquid nitrogen biological sample storage equipment.
Industrial Refrigeration: High-pressure NH3 refrigerant filling for chemical deep freezing equipment and food quick freezing equipment.
New Energy: High-pressure refrigerant filling and testing for electric vehicle battery thermal management systems.
International reference standards
Pressure equipment safety:
ASME BPVC Section VIII (US Pressure Vessel Code)
EN 378-1:2020 (European Refrigeration System Safety Standard)
Refrigeration accuracy:
ISO 80601-2-59 (Medical and Industrial Refrigeration Equipment Charging Control Standard)
Electrical safety:
UL 61010-1 (Laboratory Equipment Electrical Safety Standard)
IEC 60204-1 (Machinery Electrical Safety Code)
| Parameter | Specification |
| Pressure Range | 0–120bar |
| Operating Temperature | -120°C–60°C |
| Charging Capacity | 1g–100kg |
| Charging Accuracy | ±0.3g (≤10kg) / ±0.1% (>10kg) |
| Flow Rate Adjustment | 5g/min–20kg/min (0.1g fine-tuning) |
| Compatible Refrigerants | CO₂, NH3, R410A, R134a, etc. |
| Data Logging Capacity | 50,000 records, USB export (CSV/PDF) |
| Operation Interface | 7” explosion-proof touchscreen, 12-language support |
| Leak Detection Accuracy | ≥0.1g/year (infrared + pressure dual monitoring) |
| Power Supply | AC 220V±10%/50Hz, peak power 3.2kW |
| Protection Rating | IP65 (main unit) / IP67 (charging gun) |
| Pipeline Material | Double-layer vacuum insulated stainless steel 316L |
| Calibration Cycle | Annual (ISO 17025 calibration report provided) |
| Noise Level | ≤68dB(A) (during operation) |
| Dimensions (L×W×H) | 1200×700×1400mm |
| Weight | 110kg (including standard components) |
