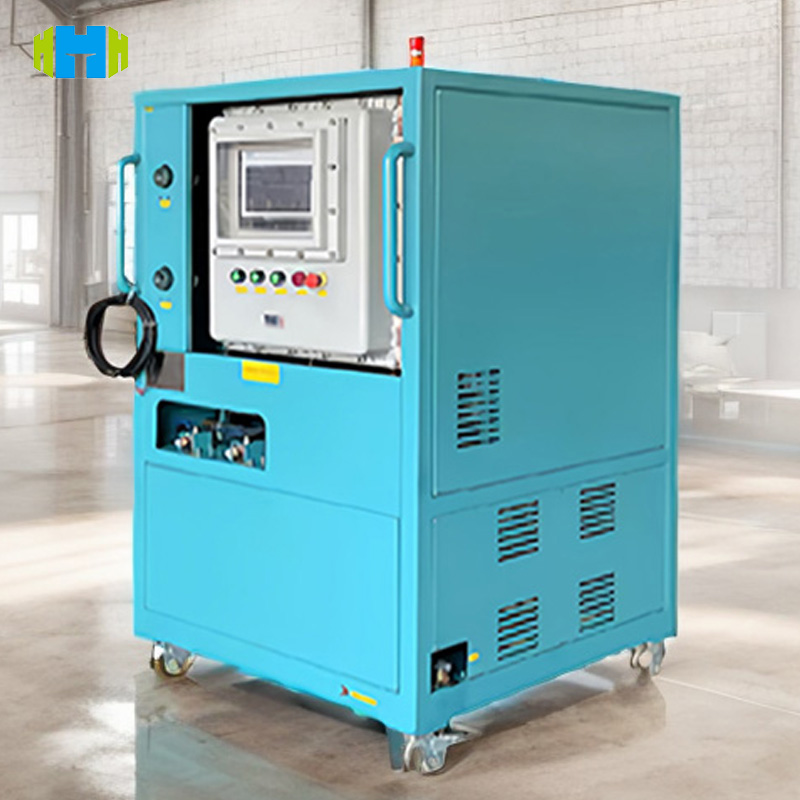

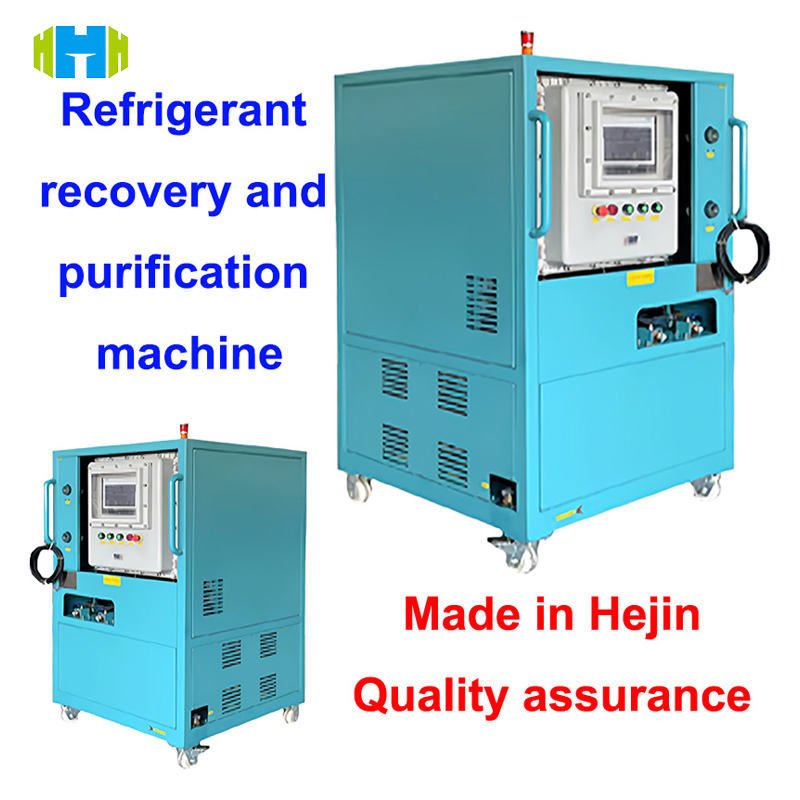

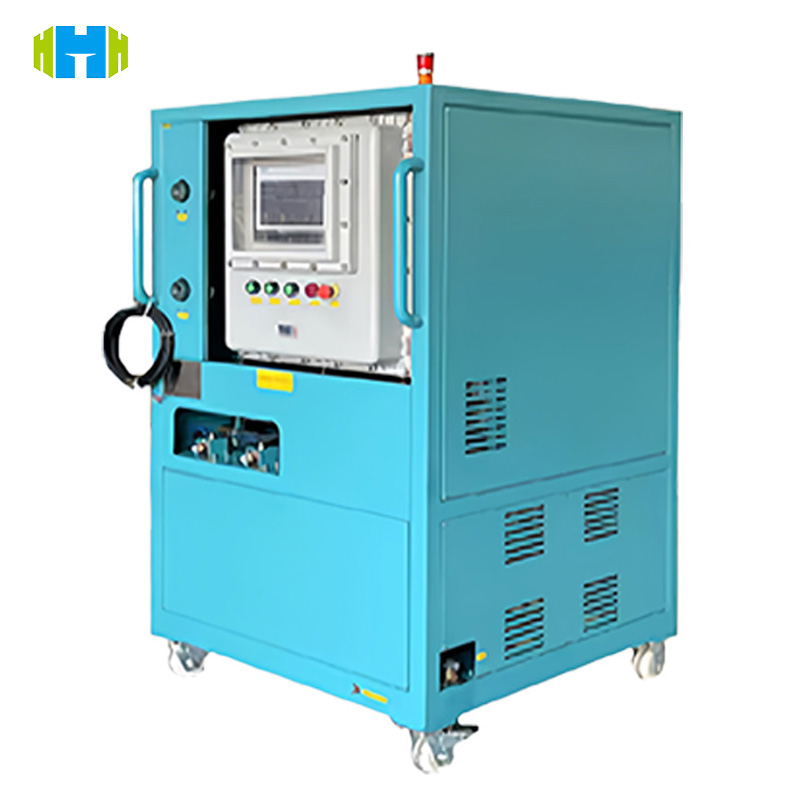

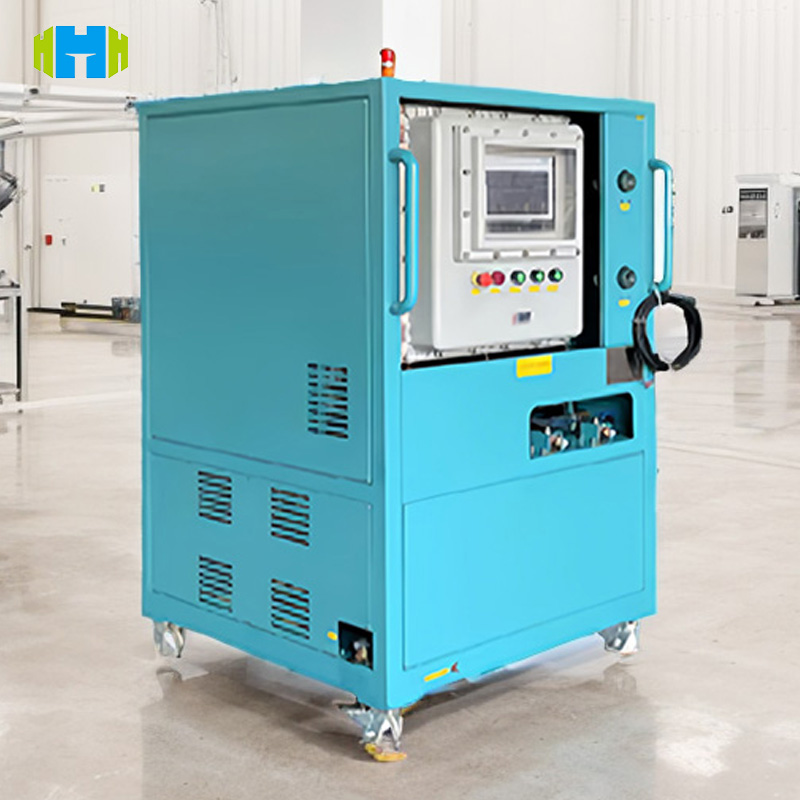

RCM0022 Refrigerant Charging and Purification Machine integrates high-precision charging and deep purification functions, and supports the circulation of multiple types of refrigerants such as HFCs, HCFCs, hydrocarbon refrigerants, etc. It has a 0.1μm two-stage filtration system and ±0.5g charging accuracy, which can remove moisture, oil and solid particles from the refrigerant. It is suitable for full-process refrigerant management in air-conditioning manufacturing, cold chain equipment, and industrial refrigeration systems to ensure efficient operation of the equipment and environmental compliance.
رقم الصنف :
hongceالنظام (موك) :
RCM0022دفع :
Calibration Certificate(Cost Additional)أصل المنتج :
CHINAPayment Method :
L/C, T/TRegular Packaging :
PlywoodRefrigerant Filling Purifier 0.1μM Filtration Accuracy 50kg/H Processing Capacity
Product Introduction
In response to the pollution problem of refrigerants during production, maintenance and recycling, RCM0022 improves the purity of refrigerants through a three-stage treatment process (coarse filtration → fine filtration → drying):
Purification module: built-in activated alumina drying bed and 0.1μm stainless steel filter element, remove ≥99.9% of moisture (≤50ppm) and solid impurities, and restore the refrigerant to factory-level purity;
Charging module: high-precision weighing sensor and dynamic flow control technology, support 10g~200kg wide range charging, accuracy of ±0.5g, adapt to the differentiated needs of household air conditioners to large cold storage;
Intelligent control system: 7-inch touch screen displays refrigerant purity, charging volume, pressure and other parameters in real time, supports 200+ customized formula storage, compatible with PLC/MES system docking, and improves the efficiency of automated production lines by 30%.
Product Use
Air conditioning manufacturing: refrigerant filling and circulation purification of household/commercial air conditioning production lines to ensure that the system is not blocked by impurities.
Cold chain logistics: refrigerant regeneration treatment of cold storage and refrigerated truck refrigeration systems to extend equipment life and reduce energy consumption.
Industrial refrigeration: high-purity refrigerant filling of chemical chillers and food quick-freezing equipment to avoid efficiency degradation caused by oil and water.
Maintenance and after-sales: refrigerant recovery, purification and reuse during central air conditioning maintenance, in line with environmental protection recycling standards.
New energy field: CO₂ refrigerant treatment of electric vehicle heat pump air conditioning systems to meet high-pressure and low-temperature working conditions.
International Reference Standards
Refrigerant Purification:
ISO 817 (Refrigerants – Nomenclature)
ASHRAE 74 (Refrigerant Recovery, Recycling, and Reclaiming Equipment)
Charging Accuracy:
ISO 80601-2-59 (Medical and Industrial Refrigeration – Charging Accuracy)
Safety and Environmental Protection:
EPA SNAP (U.S. Environmental Protection Agency Refrigerant Compliance Standard)
EU F-gas Regulation (517/2014) (EU F-gas Regulation)
| Parameter | Specification |
| Functional Modules | Charging + purification dual-mode, supports independent/combined operation |
| Compatible Refrigerants | HFCs, HCFCs, hydrocarbon refrigerants, CO₂, NH3, etc. (50+ types) |
| Purification Accuracy | Solid particles ≤0.1μm, moisture ≤50ppm, oil ≤10ppm |
| Charging Capacity | 10g–200kg (auto-switch between high-precision and high-flow modes) |
| Charging Accuracy | ±0.5g (≤50kg) / ±0.1% (>50kg) |
| Processing Capacity | Purification: 50kg/h; Charging: 20kg/h (standard conditions) |
| Filtration System | Dual-stage filter (5μm pre-filter + 0.1μm fine filter) + desiccant bed |
| Display Interface | 7” color touchscreen, supports 8 languages (English, Chinese, etc.) |
| Data Logging | Stores 100,000 operation logs, USB export (CSV/PDF) |
| Power Supply | AC 220V/110V±10%/50Hz, peak power consumption 4.5kW |
| Operating Temperature | -10°C–40°C (humidity ≤85%RH, non-condensing) |
| Pressure Range | 0–40bar (stainless steel 316L pressure-resistant pipeline) |
| Protection Rating | IP54 (main unit) / IP65 (charging gun) |
| Filter Life | Pre-filter: 500 hours; Fine filter: 1000 hours (depending on contamination) |
| Noise Level | ≤70dB(A) (during normal operation) |
| Dimensions (L×W×H) | 1300×800×1500mm (with casters) |
| Weight | 150kg (including standard filters and charging components) |
