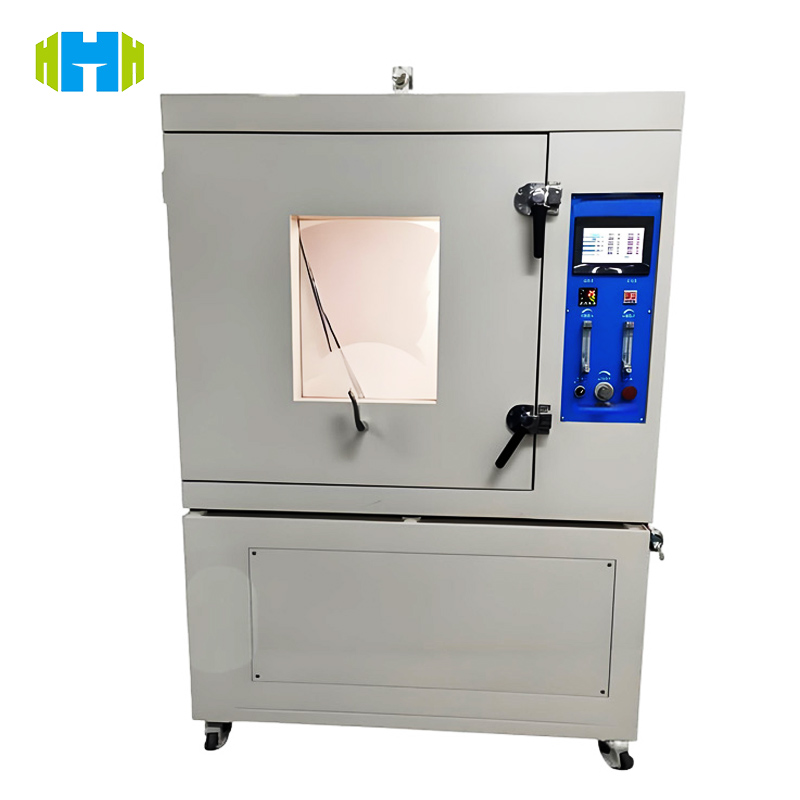

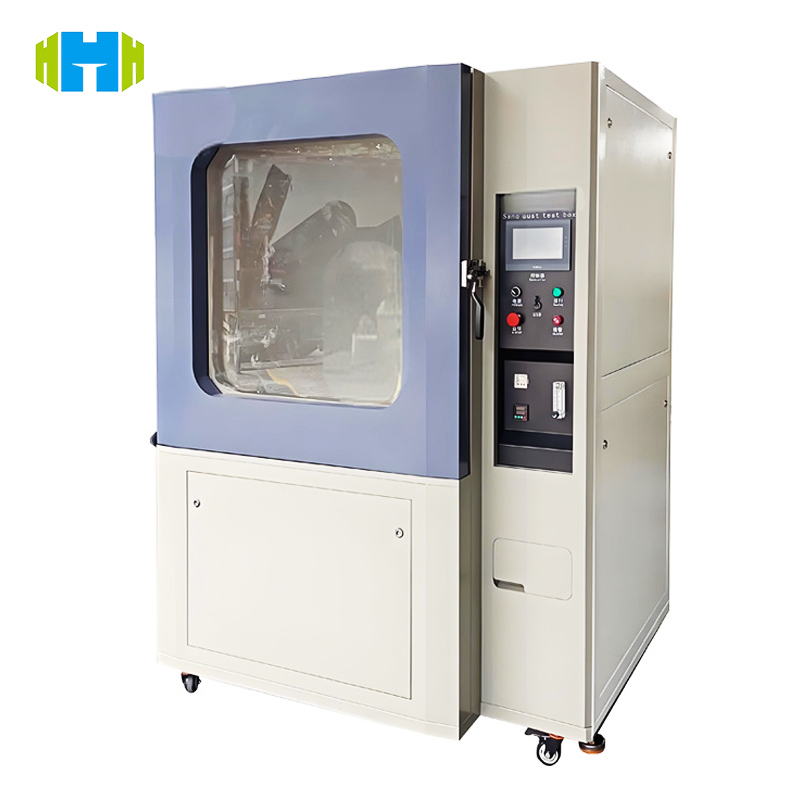

The ET-004 dust test chamber accurately reproduces extreme dust environments such as deserts and industrial dust (dust concentration 100–500g/m³), and complies with standards such as IEC 60529 and GB 4208. It verifies the sealing reliability and dust resistance of automotive, electronic, and aviation products, accelerates the exposure of design defects, and optimizes protection solutions.
رقم الصنف :
hongceالنظام (موك) :
ET-004دفع :
Calibration certificate(cost additional)أصل المنتج :
chinaPayment Method :
T/TRegular Packaging :
Plywood1000L Dust Test Chamber 500g/M³ Concentration IEC 60529 Certified Environmental Test Equipment
Product Introduction
Through a controllable airflow circulation system, 200-mesh dry silica sand (or customized dust) is evenly dispersed into a 1000L test chamber to simulate dust impact, deposition, and long-term erosion. The device supports multi-stage programming tests (such as a "2-hour dust spraying + 4-hour static" cycle), accurately controls dust concentration (±5%), wind speed (0.5–5m/s), and test duration (1–1000 hours), and reproduces the aging process of products in high temperature (-20°C~60°C optional) and high dust composite environments. Whether it is automotive ECUs, outdoor communication cabinets, or aviation cabin components, the dustproof design can be verified in advance through this device to reduce the risk of market failure.
Product Features
Wide-range sand and dust simulation: 100–500g/m³ concentration adjustment, covering desert (low dust) to industrial dust (high dust) scenes, adapting to multiple industry standards;
Precise airflow control: 0.5–5m/s wind speed adjustable, wind speed uniformity ±0.2m/s, truly simulating sand and dust impact and accumulation;
Intelligent cycle test: multi-segment program editing (dust spraying + static cycle), automatic recording of concentration, wind speed and time curve;
Large size compatibility: 1000L test chamber (1500×1000×667mm), accommodating large components such as car headlights and communication cabinets;
Efficient cleaning design: automatic backwash cleaning + 5L drawer-type dust collection box, chamber cleaning is completed within 30 minutes after the test;
Compound environment expansion: optional - 20℃~60℃ temperature control, 10–90% RH humidity control, simulating cold and hot dust compound working conditions;
Safety protection upgrade: overpressure relief valve + Dust leakage alarm to prevent dust from spilling out and contaminating the laboratory;
Electrical performance monitoring: Built-in 0–600V/0–50A test module to monitor the risk of short circuit and poor contact caused by dust in real time.
International reference standards
IEC 60529:2013 Chapter 6: IP6X dust protection level test (verification of complete protection against dust intrusion);
GB/T 4208-2017 Section 13: Enclosure protection level Dust test method;
ISO 20653:2013: Road vehicles Dust protection test for electrical and electronic equipment;
SAE J575:2017: Dust intrusion test and rating method for automotive parts.
Product Uses
Automotive industry: IP6X certification test for headlights, ECUs, sensors, and motors;
Electronic field: Dust-proof sealing verification for outdoor photovoltaic inverters, communication base stations, and drones;
Aerospace: Dust erosion test for cabin vents, avionics equipment, and landing gear;
Industrial equipment: Dust resistance performance evaluation for engineering machinery instruments, mining motors, and textile machinery;
Consumer electronics: Dust protection verification for sports cameras, smart watches, and outdoor speakers.
Technical Parameters
| Parameter | Specification |
| Chamber Volume | 1000L (Internal dimensions: 1500×1000×667 mm) |
| Dust Concentration Range | 100–500g/m³ (Accuracy: ±5%) |
| Airflow Rate | 0.5–5m/s (Uniformity: ±0.2m/s) |
| Test Duration Setting | 1–1000 hours (1-minute step, multi-cycle programmable) |
| Dust Type | 200-mesh dry silica sand (Custom dust optional) |
| Optional Temperature Range | -20°C~60°C (Temperature stability: ±1°C) |
| Optional Humidity Range | 10–90%RH (Humidity uniformity: ±5%RH) |
| Test Voltage Monitoring | 0–600V AC/DC (Real-time display, overload alarm) |
| Test Current Monitoring | 0–50A (Real-time recording, abnormal shutdown trigger) |
| Recovery Time | ≤30 minutes (Auto dust-blowing + chamber standby) |
| Control System | PLC + 7-inch color touchscreen (Program import/export supported) |
| Safety Features | Overpressure relief valve, dust leakage alarm, emergency stop button |
| Dust Collection Tank Capacity | 5L (Drawer-type, visual residual scale) |
| Power Consumption | 3.5kW (Peak, AC 380V/50Hz, 3-phase) |
| Operating Noise | ≤75dB(A) (Measured at 1m distance, stable operation) |
