Automotive parts production demands high equipment stability and detection precision. The HJ-APAT-005 bellows accumulator helium leak detection equipment meets these needs with advanced technical performance, including user-centric operational interfaces and convenient maintenance features. As a reliable testing partner, it silently ensures the integrity of every component, delivering consistent quality assurance and safeguarding your production efficiency.
رقم الصنف :
HEJINالنظام (موك) :
HJ-APAT-005دفع :
Calibration certificate(cost additional)أصل المنتج :
TurkiyePayment Method :
L/C,T/T,PayPalRegular Packaging :

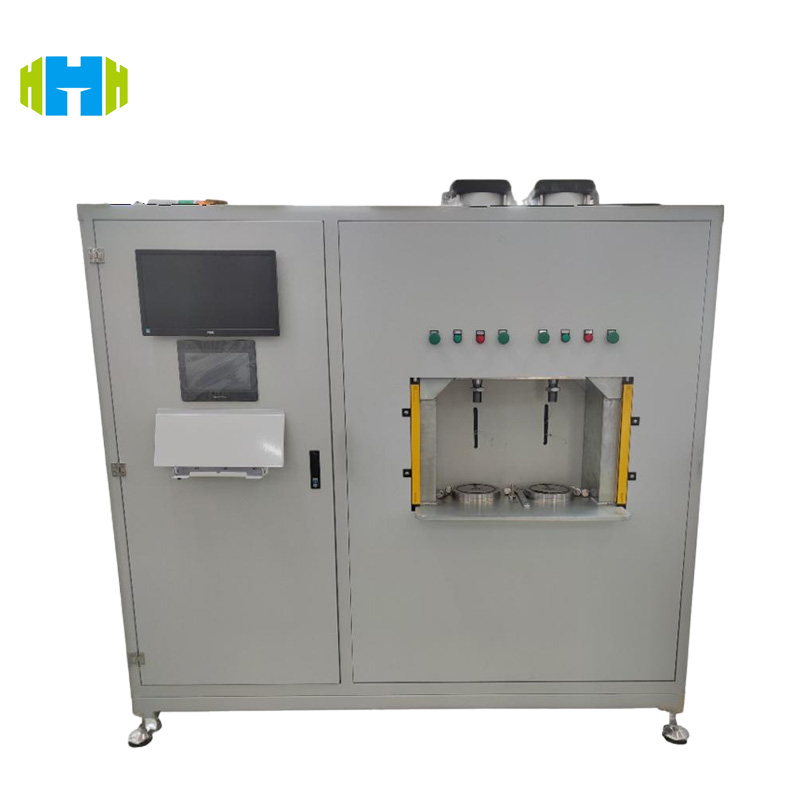

PlywoodHigh Precision Bellows Accumulator Helium Leak Detection Equipment Automotive Parts Airtightness Testing Specialist
Product Introduction:
This bellows accumulator helium leak detection equipment employs advanced helium mass spectrometry leak detection technology to rapidly and accurately identify minor leaks in automotive components like bellows accumulators. Using helium as a tracer gas, the system leverages a mass spectrometer to detect and analyze escaped helium, enabling precise airtightness assessment of parts.
Technical parameters:
|
Parameter |
Value |
|
Applicable Workpiece |
Bellows accumulator |
|
Leak Detection Gas for Micro - Leak Detection |
Helium |
|
Gas for Detecting Large Leaks of Workpiece |
Nitrogen |
|
Leak Detection Pressure (Large Leak/Micro - Leak) |
1 bar |
|
Workpiece Sealing Method |
Manual |
|
Workpiece Alarm Leak Rate |
< 5×10⁻⁹ mbar·L/s (much lower than the industry standard, indicating higher detection accuracy) |
|
Production Cycle |
45 seconds/piece (including workpiece loading and unloading, faster than the general 60 - second cycle in the market, improving production efficiency) |
|
Helium Recovery Utilization Rate |
≥90% (significantly higher than the required 80%, saving costs) |
|
Vacuum Box Quantity |
2 sets |
|
Dimensions |
2000mm×2500mm×2000mm (compact size, saving factory space) |
|
Weight |
1500 KG (relatively lightweight for easy installation and movement) |
|
Appearance Color |
RAL7035 (standard and elegant color) |
|
Detection Range of Leak Detector |
1×10⁻³ Pa·m/s - 1×10⁻¹³ Pa·m²/s (wide range for detecting various leakage levels) |
|
Adjustable Hydrogen Detection Concentration |
75% - 85% (flexible adjustment to adapt to different detection requirements) |
|
Power |
15 KW (lower power consumption compared to similar products, reducing operating costs) |
